Raptor W5 Rugged Wearable computer

Raptor W5

Rugged Wearable Computer

W5 Specification

If you need to keep your hands free for other tasks, then the Raptor W5 Wristmount computer is for you. Fully rugged, Android OS with choice of barcode scanning means the W5 is ideal for picking, courier or duties that involve scanning with lifting of items.

1D or 2D barcode scanner

Light and ergonomic

Keeps your hands free

Technical Specification & downloads

Expand +

Battery
Battery type
Field replaceable Li-ION Polymer
Capacity
2850mAh
Backup battery
RTC
Network
4G Bands
FDD-LTE: 1, 2, 3, 4, 5, 7, 8, 28A, 28B
3G Bands
HSPA+ 850/900/1900/2100
2G Bands
850/900/1800/1900
SIM slots
1x micro-SIM
Connectivity
Wlan
WiFi 802.11 a/b/g/n
Bluetooth
BT v4.0 HS low energy
GPS
A-GPS / BaiDou
Barcoding / RFID
2D Zebra SE4710

Linear

UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, MSI, Telepen, Trioptic, China Post

2D Stacked

PDF417, MicroPDF417, GS1 Composite

2D Matrix

Aztec Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, Han Xin Code

Postal

Intelligent Mail Barcode, Postal-4i, Australian Post, British Post, Canadian Post, Japanese Post, Netherlands (KIX) Post, Postnet, Planet Code

OCR Option: OCR-A, OCR-B, E13B (MICR)

Expansion
MicroSD
Yes
OTG capable
Yes
CPU & RAM
CPU
Qualcomm snapdragon MSM8916 quad-Core 1.2 GHz
RAM
2GB)
ROM
16GB
OS
Android v7.1, Google Play (GMS), with Safedroid
Size & Weight
Size (mm)
118x91x33 (h,w,d)
Weight
166g (232g inc battery)
Screen/Display
LCD Size
4"
Resolution
480x800(HD) TFT, multi touch, works with gloves.
Scratch/impact cover
RAPTEC "no more cracks" Impact screen
Durability/Rugged features
operating temp
-10 to 50 C
Storage temp
-20 to 70 C
Drop Spec
1.5M
Dustproof
IP65 (dust tight)
Waterproof
IP65 - Water proof
Shockproof
1000 tumbles at 0.5M
Other testing
MIL-STD 810G: humidity 5%-95%
Connector
Rugged copper dot connector.
Camera
Main - located on side
8MP, AF + Flash
Front
-
Media
Audio
Loudspeaker, microphone, supports speaker phone
Headphones
3.5mm headphone jack
Sensors
Proximity
Yes
Ambient light
Yes
Notification
Vibration/Sound alert
keys/Buttons
Hard Keys
Power, F1, F2, Home, Back, Menu
Soft Keys
Android Menu, Home, Back
Hide Spec

Why hold when you can Wear!

The Raptor W5 is a wrist-mount device.

Leaves hands free

Light enough to wear all day long

Can be used with optional bluetooth barcode scanner

Learn more

Rugged smartphone

Rugged as anything

MILSTD Drop tested to 1.5M

IP65 - dust tight and water proof

LCD has impact protection shield

Bluetooth Barcode scanner

Use with optimised Raptor SC-70 Bluetooth finger mount barcode scanner

Pairs with any Bluetooth barcode scanner

Bring a new dimension to your scanning ergonomics

Rugged smartphone connector

A hub for Connection

Pair with multiple BT devices to create a powerful work tool

Safedroid Android OS

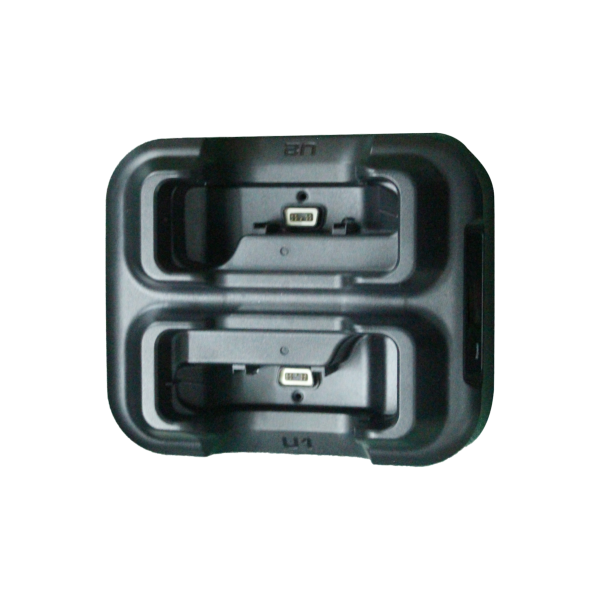

Raptor E5 handheld in cradle Raptor E5 handheld in cradle Raptor E5 handheld in cradle Raptor E5 handheld in cradle

Enterprise Accessories

Everything you need for an ergonomic, business focused mobile solution.

View all W5 accessories

Reliable, clean Operating system

GMS Certified Operating system

Safedroid layer adds features and security

Safedroid Android OS
Rugged smartphone connector

High sensitivity touch screen

Bright 4.0" screen is easy to read and use

High sensitivity modes mean you use screen whilst wearing gloves

Awesome warranty & support

Support is what sets Raptor apart and our Raptor W5 enjoys the best support and repair services you'll find

FAST

Even our most basic support and warranty services are fast.

Repair portal
SIMPLE

Our "Raptorhub" portal makes running your devices support easy.

Proven support
Proven

95% of basic warranty repairs completed in under 24 hours.

TCO Rugged support
PEACE OF MIND

Multi-year support contracts for peace of mind. Lots of bespoke services.

learn more

Meet our rugged handheld Family

Highly Focussed, rugged devices with deep features, quality and "built for business" support.

View our rugged hardware page
