Raptor E6X Rugged Handheld computer

Raptor E6X

Rugged Handheld Computer

E6 Specification

X is for Extreme! The Raptor E6X is our most advanced and powerful rugged handheld. Built for many scenarios and with one of the best specifications you'll find anywhere, the E6X will get the job done.

Top-of-range Honeywell N6703 barcode scanner

Large, 4300mAh replaceable battery

Advanced spec

Technical Specification & downloads

Expand +

Battery
Battery type
Field replaceable Li-ION Polymer
Capacity
4300mAh
Work time
< 10 hours
Network
4G Bands
FDD-LTE: (1, 2, 3, 4, 5, 7, 8, 12, 17, 19, 20, 28A, 28B, 38, 39, 40, 41) TD-LTE: (34, 38, 39, 40, 41) See spec sheet for full description
3G Bands
HSPA+ 850/900/1900/2100
2G Bands
850/900/1800/1900
SIM slots
2x Dual nano SIM
Supports Vo-LTE HD Video calling
Connectivity
Wlan
IEEE 802.11 a/b/g/n/ac/d/e/h/i/k/r/v/w. IPV4/IPV6, 2x2 MU-MIMO
2.4GHz up to 300Mbps, 5GHz up to 866Mbps
Fast roaming PMKID caching, 802.11r, OKC
Bluetooth
BT v5.0, BR/EDR/BLE
GPS
Concurrent GPS using GALLILEO, A-GPS / GLONASS, BeiDou
Barcoding / RFID
2D Honeywell N6703

Linear

UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, MSI, Telepen, Trioptic, China Post

2D Stacked

PDF417, MicroPDF417, GS1 Composite

2D Matrix

Aztec Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, Han Xin Code

Postal

Intelligent Mail Barcode, Postal-4i, Australian Post, British Post, Canadian Post, Japanese Post, Netherlands (KIX) Post, Postnet, Planet Code

OCR Option: OCR-A, OCR-B, E13B (MICR)

See N6703 Barcode spec for more details

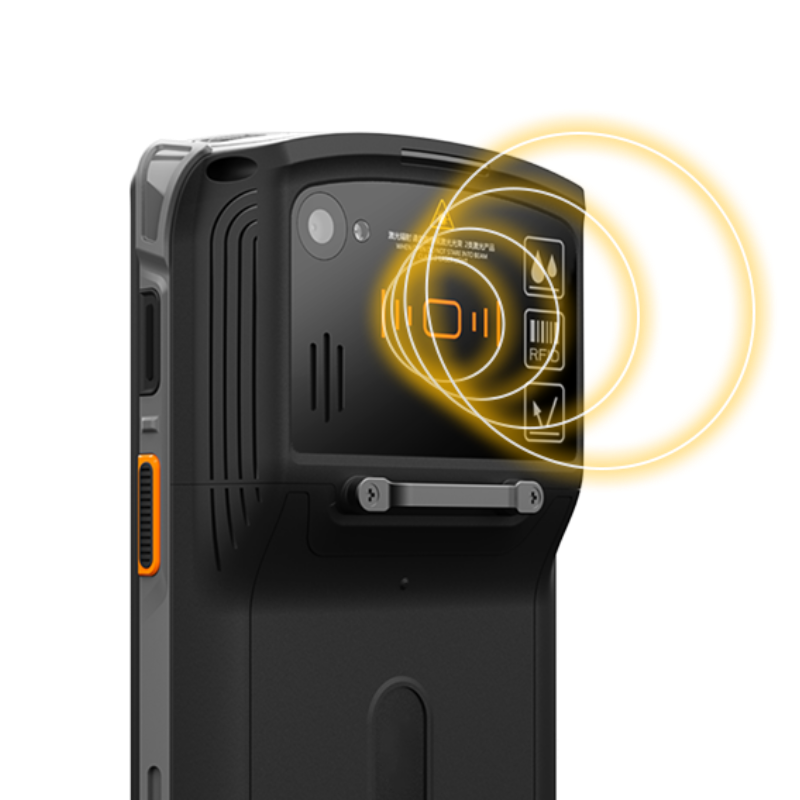

RFID
Supports Felecia/MiFare 13.56Mhz, ISO14443A/B, ISO15693 reader, P2P & Card emulation modes. Apple enhanced ECP, NFC
NFC
Yes
Expansion
MicroSD
DHC, SDXC 128GB supported.
OTG capable
Yes
CPU & RAM
CPU
Qualcomm snapdragon 660 Octa-Core 2.2 GHz
RAM
4GB (6GB Option)
ROM
64GB (128GB option)
OS
Android v9.0, Google Play (GMS), with Safedroid and AER
Size & Weight
Size (mm)
152 x 76 x 14 (h,w,d)
Weight
250g (inc battery)
Screen/Display
LCD Size
5.7"
Resolution
720x1440 TFT, (1080x2160 optional). Works with gloves and in wet.
Scratch/impact cover
Corning Gorilla glass + RAPTEC "no more cracks" Impact screen
Durability/Rugged features
operating temp
-20°C to 60°C
Storage temp
-40°C to 70°C
Drop Spec
1.5M (1.8 with case) tested across operating temperature.
Dustproof
IP67 (dust tight)
Waterproof
IP67 - Water proof
Shockproof
500 tumbles at 0.5M
Other testing
MIL-STD 810G: humidity 5%-95%
Vibration
2Hz random PK Sine, 10CM disp withstanding multi-side 5000 vibration tests
Thermal Shock
-40°C ~ 700176C rapid transition
Camera
Main (rear)
16MP/2MP Dual camera, AF + Flash
Front
5MP + AF
Media
Audio
Dual microphone with noise cancellation, high quality loud speaker
Headphones
3.5mm headphone jack, with PTT headset support
Sensors
Proximity
Yes
Ambient light
Yes
E-Compass
Yes
Accelerometer
Yes
G-Sensor
Yes
Notification
Vibration/Sound alert
Dimension Measuring
Yes
keys/Buttons
Hard Keys
Power, Volume up, Volume down, scanner left/right, user definable button
Soft Keys
Android Menu, Home, Back
Connector
Dual array copper dot + USB-C.
Hide Spec

X is for eXtreme!

The E6X was created for those who needed the ultimate in Rugged mobile computing.

Scroll down to see whats different to the standard e6.

Rugged smartphone connector

Upgraded CPU & Memory

Upgraded Snadragon 660 octa-core CPU, coupled with up to 6GB RAM / 128GB ROM brings class leading power, with superb energy consumption.

Top lineBarcode Scanning

The upgraded Honeywell N6703 2D barcode scanner will simply amaze you at how good barcode scanning can be.

E6X with N6703 barcode scanner
Rugged smartphone connector

Dual lensCamera

Upgraded 16/2MP dual rear camera makes your camera shots crisp and clear.

Built in fingerprint reader

Fast, built in fingerprint reader adds extra security and convenience.

E6X with N6703 barcode scanner
Rugged smartphone connector

Dual lensCamera

More speed, range and throughput than ever before.

Low energy usage to save battery.

Raptor E5 handheld in cradle Raptor E5 handheld in cradle Raptor E5 handheld in cradle Raptor E5 handheld in cradle

Enterprise Accessories

All the E6 series accessories fit the E6X.

View all E6X accessories

Rugged as anything

The E6X has been dropped, submerged, tumbled, vibrated, shocked, thrown, dusted and more. Its more than rugged enough.

MILSTD Drop tested to 1.5M (1.8M with Jacket)

IP67 - dust tight and water proof

Gorilla glass, with impact protection shield

Rugged smartphone

Theres an E6 version for every scenario

Built flexible, so it will fit almost any rugged mobile scenario.

Reliable Operating system

GMS Certified Operating system

regular OS updates

Safedroid layer adds features and security

Safedroid Android OS
Safedroid Android OS

Awesome warranty & support

Support is what sets Raptor apart and our Raptor E6 enjoys the best support and repair services you'll find

FAST

Even our most basic support and warranty services are fast.

Repair portal
SIMPLE

Our "Raptorhub" portal makes running your devices support easy.

Proven support
Proven

95% of basic warranty repairs completed in under 24 hours.

TCO Rugged support
PEACE OF MIND

Multi-year support contracts for peace of mind. Lots of bespoke services.
